Foil Drive Assist MAX - base kit

This is a Base Kit of a Assist MAX only, with no motor or battery included.

The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!

Universal Mast Adaptor that suits 99% of foil masts available

Bluetooth Connectivity to the Foil Drive Mobile App

If you are looking for an integrated mast with your Assist MAX see these listings

Foil Drive Assist MAX x NoLimitz v2 Integrated Mast

Assist MAX x AXIS Integrated Mast

The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!

BASE KIT ONLY!!!

DOES NOT INCLUDE

*Choice of Battery with Lipo Bag*

Choice of Gen2 Motor with 2/3 Blade Propeller/Hub and Stubbie Cooler

V2 Motor puck

UNIVERSAL MAST ADAPTOR NOW INCLUDED!

INCLUDED IN BASE KIT IS:

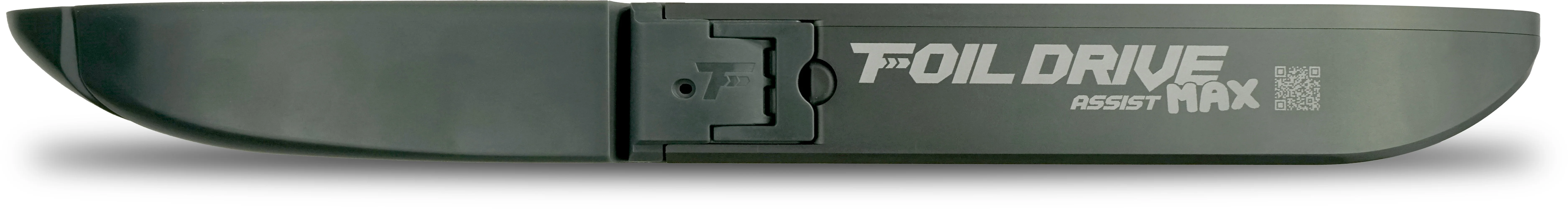

Foil Drive Assist MAX Electronics Box

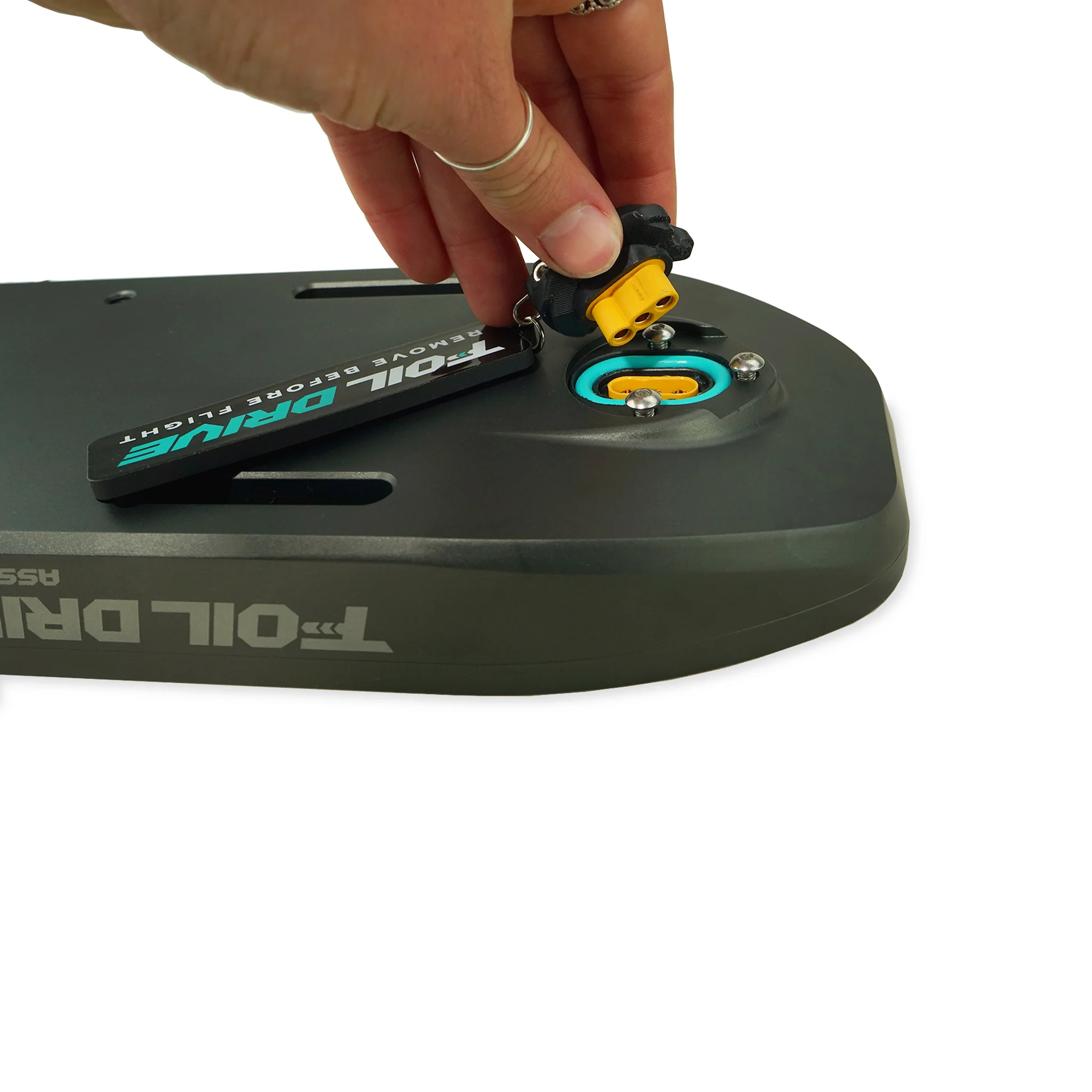

Motor Plug Protector with Keychain

Foil Drive Nose Cone A

Foil Drive Nose Cone B

Foil Drive Universal Motor Pod - Rear

Foil Drive Universal Motor Pod - Short Nose

Foil Drive Universal Motor Pod - Long Nose

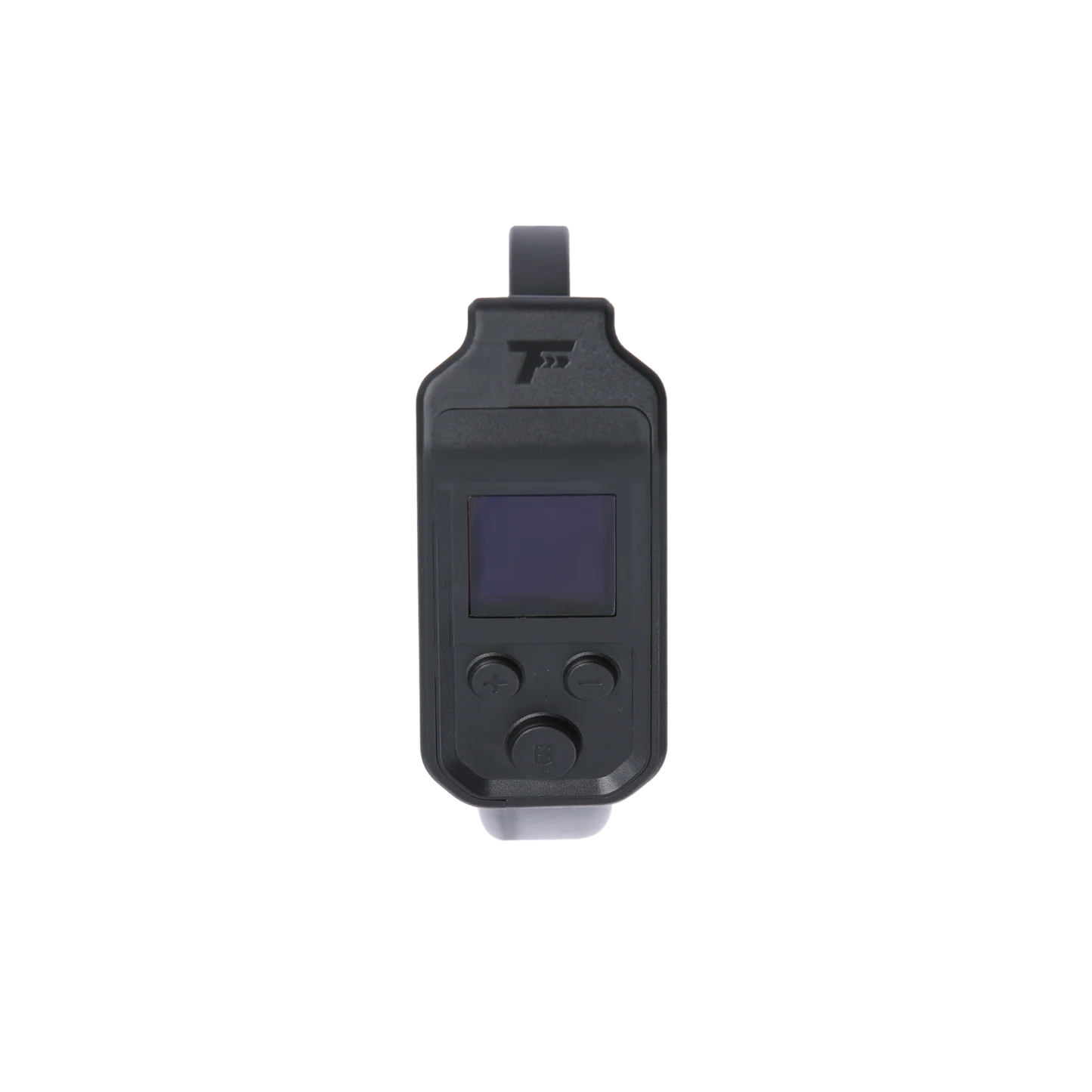

Foil Drive v3 Wireless Throttle Controller

Foil Drive Controller Wrist Strap

Foil Drive Mast Cable Guide 23cm

Foil Drive Controller Wireless Charge Pad

Micro USB Cable

40v Standard Foil Drive Charger 4amp

4x Mast Track Foam Inserts

2x Nose Cone Rocker Pad

2x Battery Grease

4x M8 Assist MAX Mast Plate Bolts 80mm

4x M6 Assist MAX Mast Plate Bolts 80mm

Foil Drive 2.5mm Driver

Torx T40 Tee Handle Driver

Torx T30 Tee Handle Driver

Foil Drive Cleaning Cloth

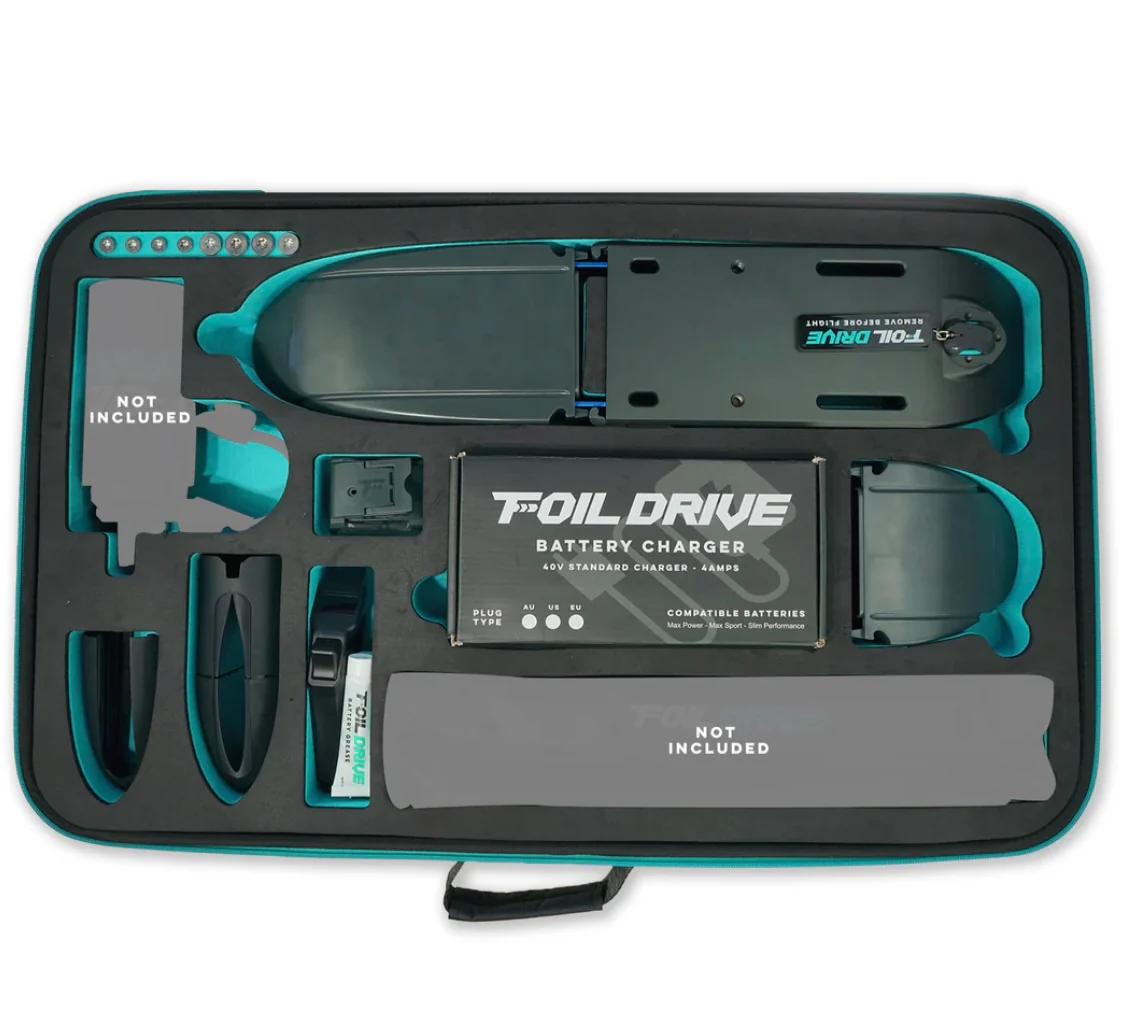

Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag

- 4x M8 Locking Tee Nuts

- 4x M6 Locking Tee Nuts

- 4x M3 x 20mm Bolts for Locking Tee Nuts

- 2x M3 x 16mm Latch Locking Bolts

Foil Drive Motor and Pod Bolts Bag

- 4x Motor Pod Bolts (M3 x 12mm)

- 3x Puck Bolts (M3 x 12mm)

- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag

- 2x O-Ring Seals - Foil Drive Assist MAX

- 2x Latch Assembly - Foil Drive Assist MAX

- 3x Motor Plug Bolts (M3 x 12mm)

- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)

- 2x Latch Locking Bolts (M3 x 16mm)

- 2x Propeller Bolts (M3 x 30mm)

- 2x Latch Pivot Bolts (M3 x 45mm)

Compatible With

MAX Power Battery

MAX Sport Battery

Universal Motor Systems for Gen2

Project Cedrus Integrated Mast for Gen2

AXIS Integrated Mast for Gen2



Tech Specs

Max Thrust: 27.5kg (60.6lbs)

Weight Range: 3.4-4.5kg (7.4-9.9lbs)

Dimensions with Long A Nose Cone: L525 x W125 x H50mm

Dimensions with Short B Nose Cone: L415 x W250xH50mm

App compatibility: Foil Drive app, Android and IOS

Total Install Weight: 4.8-5.8kg (10.5-12.7lbs)

This is a Base Kit of a Assist MAX only, with no motor or battery included.

For safety with initial purchase we highly recommend the propellor guard - https://hydrofoilstore.com/products/foil-drive-propeller-guard
