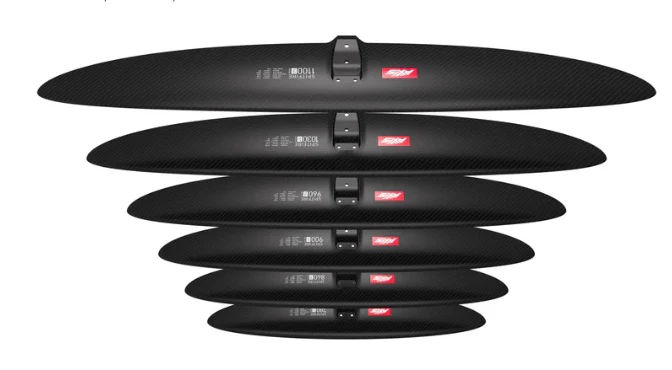

AXIS Spitfire Range

Blue Cover included

Highly awaited Front wings from Axis

You’ll recognise it by its distinctive elliptical outline

Imagine a dedicated surf foiling wing, that lets you foil waves like a surfer would. If you’re anything like us, you’ve been dreaming of an effortless turning wing, that inspires confidence when dropping in, that has a gentle, predictable easy lift up onto foil. A foil that not only handles breaches but encourages them. No wave is the same, sometimes you need a turn of speed, and on another, you need to slow right down but stay on foil. A wing you can just forget about and get on with the business of enjoying yourself. Of course, that wing has to be capable of pumping you back out to do it all again and again. The wait is over, meet the AXIS Spitfire.

You’ll recognise it by its distinctive elliptical outline, straight median line and lack of aggressive turndown through the tips. Moderate chord lengths, that taper smoothly from the centre to the tips, encourage smooth, predictable but precise turning. Reduced foil thickness for enhanced top end to compliment the greater chords providing easy low end.

Many of these attributes are shared by the ARTPRO Range of wings, and in fact much of what we learned in the development of that line fed into the Spitfire’s make-up.

Through the development process, we put the Spitfire through its paces. The smaller sizes are fast with explosive turning. The larger sizes are great for smaller spots and larger riders. The Spitfires are versatile front wings, able to ride waves or flat water across prone, SUP, winging, wake, downwind, lake pumping and kite foiling disciplines.

They do it all.

Spitfire foils are ideally matched with our Black Advance fuselage and Progressive or Skinny rear wing ranges.



Axis Spitfire 1180 Dimensions

Wingspan 1180mm (46.46in)

Chord 165mm

Mean Average Chord 129.2mm

Actual Surface Area 1554cm2

Projected Area 1525cm2

Volume 1637cm3

Aspect Ratio 9.13



Axis Spitfire 1100 Dimensions

Wingspan 1100mm (43.31in)

Chord 160mm (6.30in)

Mean Average Chord 127.1mm

Actual Surface Area 1423cm2 (220.6in2)

Projected Area 1398cm2 (216.7in)

Volume 1406cm3 (86in3)

Aspect Ratio 8.66



Axis Spitfire 1030 Dimensions

Wingspan 1030mm (40.55in)

Chord 157mm (6.18in)

Mean Average Chord 124.7mm

Actual Surface Area 1308cm2 (202.7in2)

Projected Area 1285cm2 (199.2in2)

Volume 1270cm3 (78in3)

Aspect Ratio 8.26



Axis Spitfire 960 Dimensions

Wingspan 960mm (37.80in)

Chord 154mm (6.06in)

Mean Average Chord 122.4mm

Actual Surface Area 1196cm2 (185.4in2)

Project Area 1175cm2 (182.1in2)

Volume 1142cm 370in

Aspect Ratio 7.84



Axis Spitfire 900 Dimensions

Wingspan 900mm (35.43in)

Chord 151mm (5.94in)

Mean Average Chord 124.1mm

Actual Surface Area 1099cm2 (170.3in2)

Projected Area 1080cm2 (167.4in2)

Volume 1032cm3 (63in3)

Aspect Ratio 7.25



Axis Spitfire 840 Dimensions

Wingspan 840mm (33.07in)

Chord 148mm (4.83in)

Mean Average Chord 117.6mm

Actual Surface Area 1006cm2 (155.9in2)

Projected Area 988cm2 (153.1in2)

Volume 928cm3 (57 in3)

Aspect Ratio 7.14



Axis Spitfire 780 Dimensions

Wingspan 780mm (33.71in)

Chord 145mm (5.71in)

Mean Average Chord 113.6mm

Actual Surface Area 902cm2 (139.8in2)

Projected Area 886cm2 (137.3in2)

Volume 811cm3 (49in3)

Aspect Ration 6.87
